Water Filter Pipe
In addition to water intake, it can also prevent soil or rock particles around the well wall from flowing into the well and clogging the well pipe. It also supports and protects the well wall so that the pumping hole can be used normally. Some hard fissures and karst aquifers have stable well walls and no loose fillings. When pumping water, no filter pipes need to be installed. Loose pore-bearing layers or broken bedrock aquifers must all be installed with suitable filter pipes. Cement gravel filter pipes are also commonly used in agricultural water supply wells. The brick and wood well walls of civilian wells actually filter water and purify water resources.

Product sellable. Not available in the online Store - please contact us.

Contact us
The pictures shown are for reference only.
SPECIFICATION

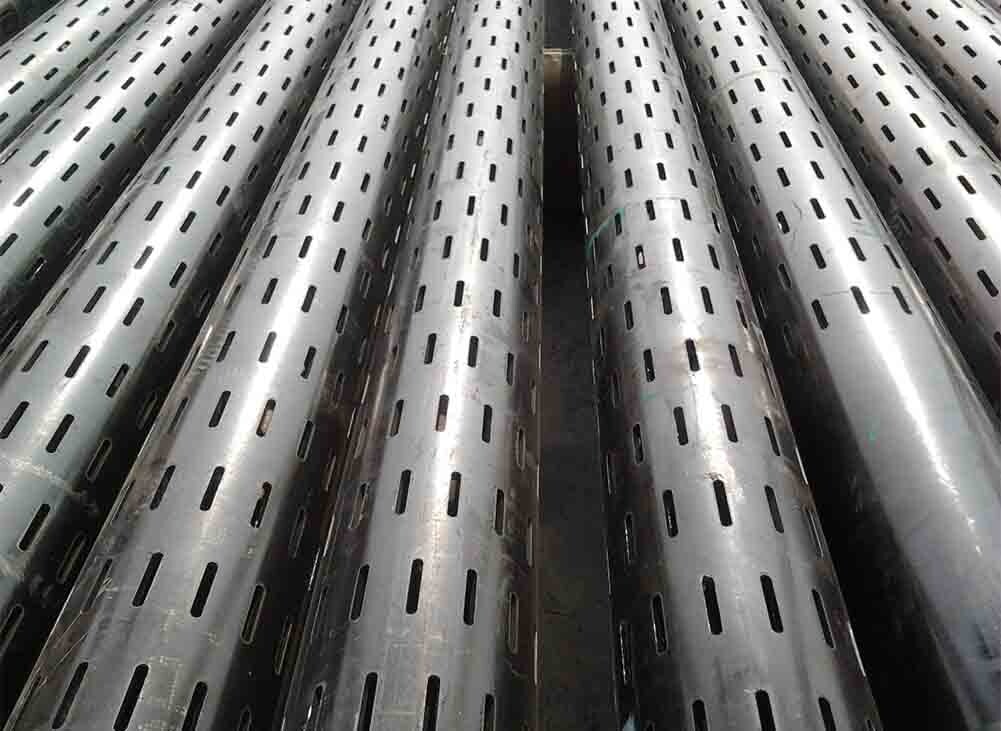

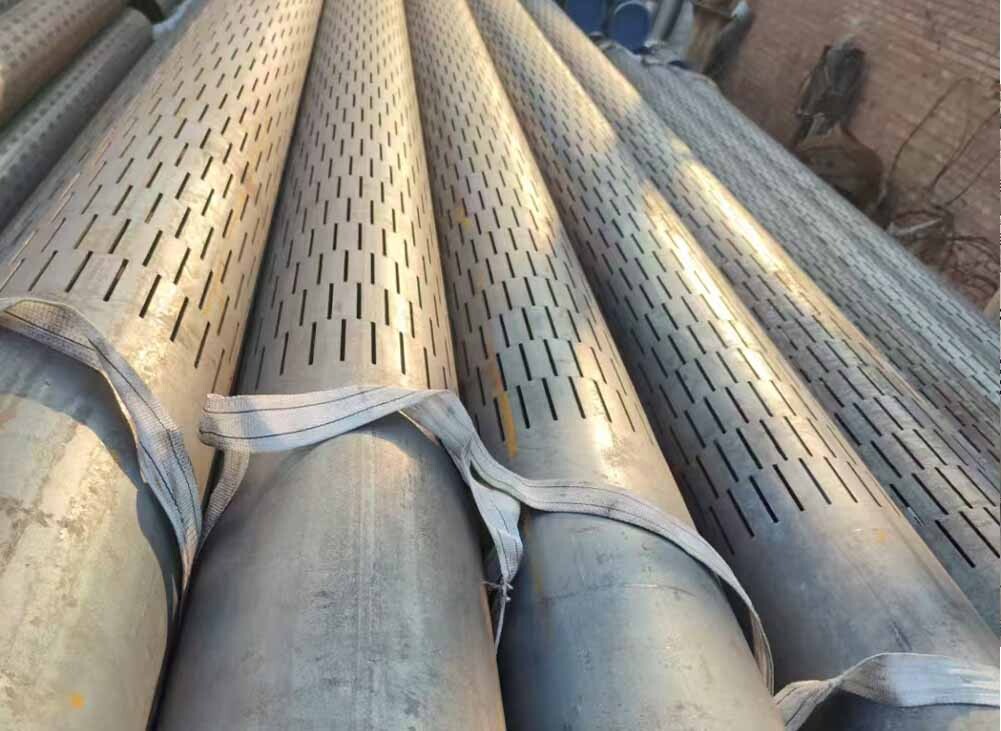

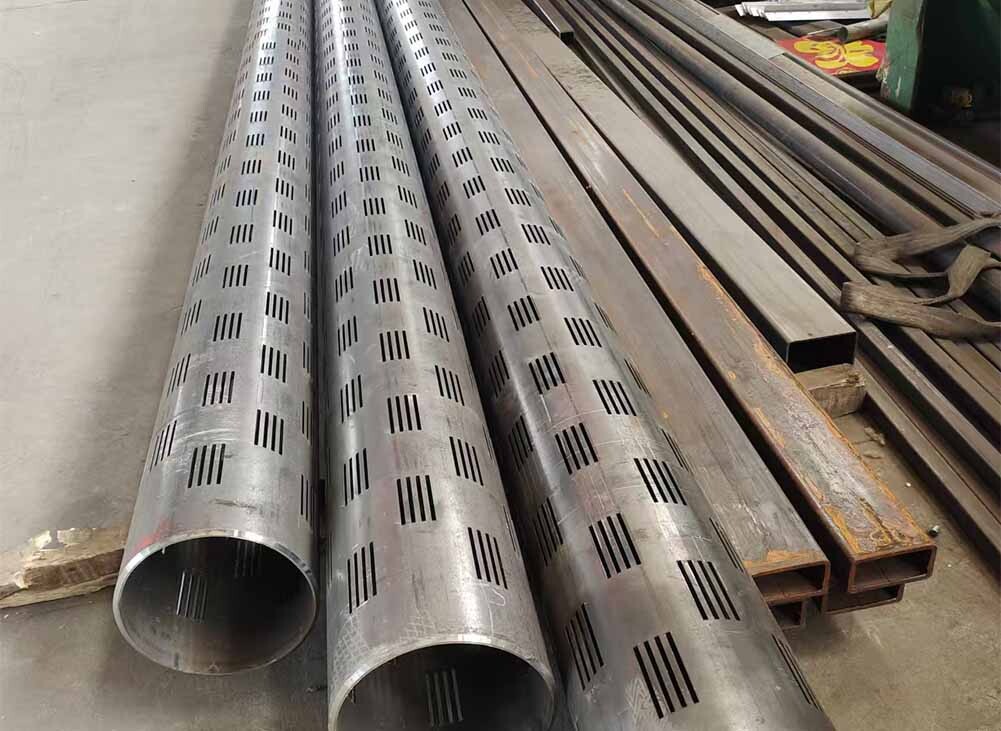

PRODUCT DISPLAY
MATERIAL / DOCUMENT DOWNLOAD

    API Casing

ID mm
Length m

Slot

Length

mm

Slot No.No.

/m

Slot width

mm

Slot Tolera

nce

Valid Filter

Area

cm/m

Max

Strength

KN

spec

mm

Thickness

mm

Per

Weight

60.3256.8450.3
3
80
2000.3 ±5048512.54
70.325.59.15
6224057.6
688.55
88.96.5
13.2275.928067.2995.1
101.6
6.515.2288.6300721151.2
114.37
18.47100.310
32076.81400.4
1277.5222.1311234081.61673.8
139.7
7.7225.11124.336086.41900.2
9.1729.48121.436086.42232.4
1668.38.9435.09150.4400962672.95
177.8
8.0533.68161.7440105.62559.2
9.1938.19159.4440105.62940.7














Pipe Size/InchHoles NO/FeetSize of Hole/InchPerforated Area/Per Feet
3/4''483/16''2.15
1''545/16''4.14
1-1/4''665/16''5.06
1-1/2''785/16''5.06
2-1/16''785/16''5.98
2-3/8''903/8''9.94
2-7/8''1023/8''11.26
3-1/2''1263/8''13.91
4''1383/8''15.24
4-1/2''1503/8''16.56
5''1623/8''17.88
5-1/2''1743/8''19.21
6-5/8''1863/8''20.53
7''
2223/8''24..51
9-5/8''2943/8''32.46
