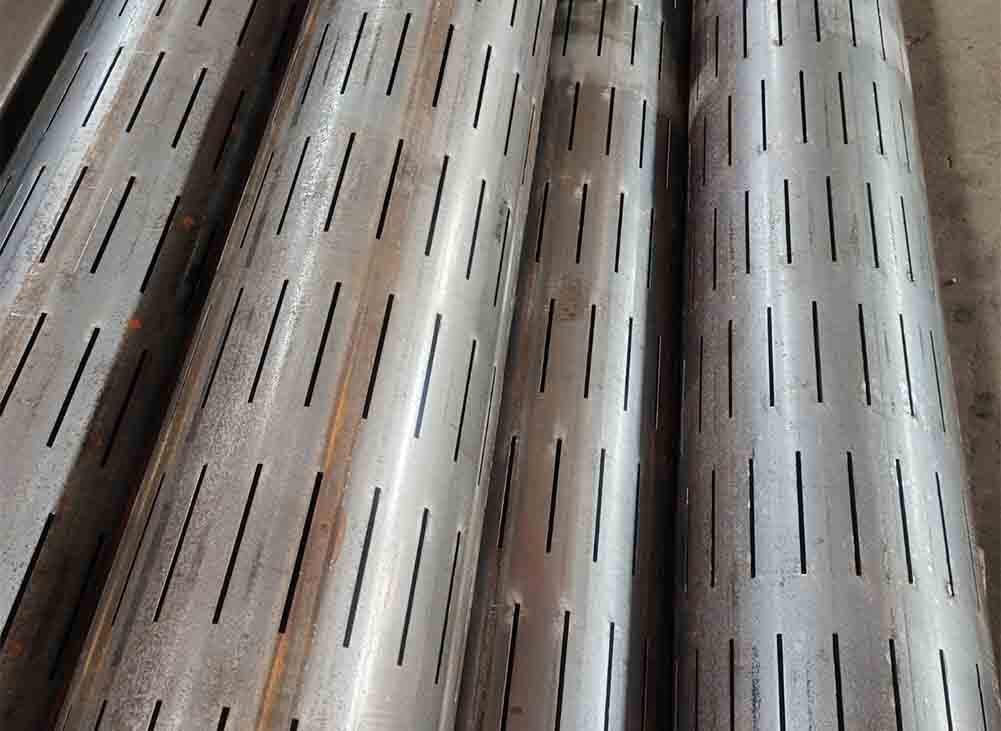

Screen Pipe

Ensure superior filtration with ShanDong HaoXuan's premium range of filter pipes! Designed for a variety of applications, including drainage, irrigation, and wastewater treatment, our filter pipes are engineered to deliver exceptional performance and reliability.


Product sellable. Not available in the online Store - please contact us.

Contact us

The pictures shown are for reference only.

SPECIFICATION

PRODUCT DISPLAY

MATERIAL / DOCUMENT DOWNLOAD

Water Filter Pipe			ID mm	Length m	Slot Length mm	Slot No.No. /m	Slot width mm	Slot Tolera nce	Valid Filter Area cm/m	Max Strength KN
spec mm	Thickness mm	Per Weight	ID mm	Length m	Slot Length mm	Slot No.No. /m	Slot width mm	Slot Tolera nce	Valid Filter Area cm/m	Max Strength KN
60.32	5	6.84	50.3	3	80	200	0.3	±50	48	512.54
70.32	5.5	9.15	62			240			57.6	688.55
88.9	6.5	13.22	75.9			280			67.2	995.1
101.6	6.5	15.22	88.6			300			72	1151.2
114.3	7	18.47	100.3	10		320			76.8	1400.4
127	7.52	22.13	112			340			81.6	1673.8
139.7	7.72	25.11	124.3			360			86.4	1900.2
139.7	9.17	29.48	121.4			360			86.4	2232.4
1668.3	8.94	35.09	150.4			400			96	2672.95
177.8	8.05	33.68	161.7			440			105.6	2559.2
177.8	9.19	38.19	159.4			440			105.6	2940.7

Pipe Size/Inch	Holes NO/Feet	Size of Hole/Inch	Perforated Area/Per Feet
3/4''	48	3/16''	2.15
1''	54	5/16''	4.14
1-1/4''	66	5/16''	5.06
1-1/2''	78	5/16''	5.06
2-1/16''	78	5/16''	5.98
2-3/8''	90	3/8''	9.94
2-7/8''	102	3/8''	11.26
3-1/2''	126	3/8''	13.91
4''	138	3/8''	15.24
4-1/2''	150	3/8''	16.56
5''	162	3/8''	17.88
5-1/2''	174	3/8''	19.21
6-5/8''	186	3/8''	20.53
7''	222	3/8''	24..51
9-5/8''	294	3/8''	32.46
