Hot Dipped Galvanized Steel Pipe

Hot dip galvanized pipeHot dip galvanized pipe is to make molten metal and iron matrix reaction to produce alloy layer, so that the substrate and coating two combined.Hot dip galvanizing is to pickle the steel pipe first. In order to remove the iron oxide on the surface of the steel pipe, after pickling, it is cleaned by ammonium chloride or zinc chloride aqueous solution or ammonium chloride and zinc chloride mixed aqueous solution tank, and then sent into the hot dip plating tank.Hot dip galvanizing has the advantages of uniform coating, strong adhesion and long service life.


Product sellable. Not available in the online Store - please contact us.

Contact us

The pictures shown are for reference only.

SPECIFICATION

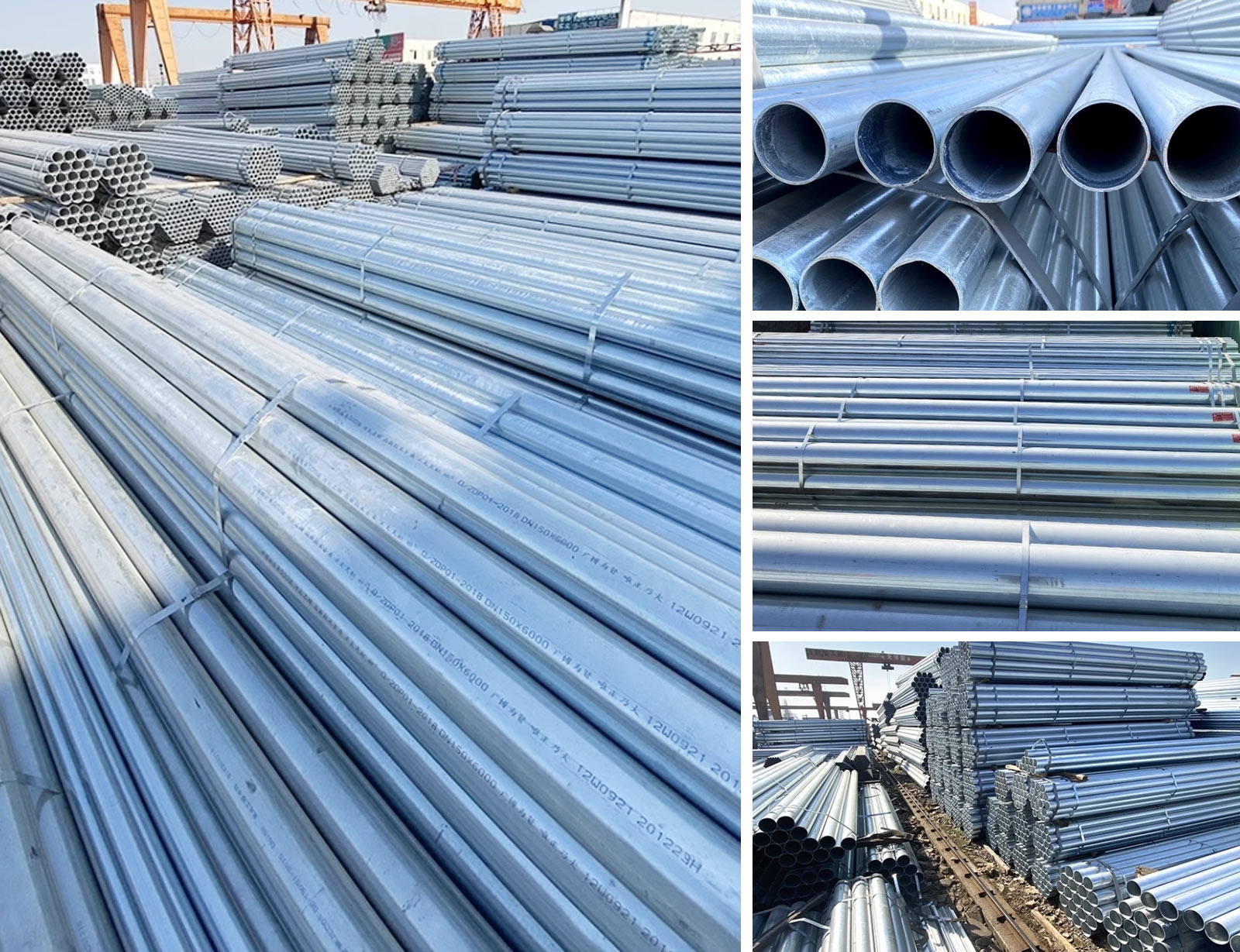

PRODUCT DISPLAY

MATERIAL / DOCUMENT DOWNLOAD

Outer Diameter	1/2”~16” 20~406mm
Thickness	0.8~2.75mm
Length	Normal 5.8m, 6m ，random length can be customized
Zinc Coating	40~275g/㎡
Tolerance	OD:+/-0.5mm
	WT: +/-0.05mm
	Length: +/-20mm
Straightness	As Per Standard
Certificate	ISO 9001,IS014001,ISO45001,ISO50001,CE,LR,ICC,SGS.BV etc
Surface Treatment	Zinc plated ,Passivation, Marking,Embossing
Pipe End	Plain end / Blunt end / Screwed and socked & protected by plastic caps
Deep Processing	Threaded,sockets,end cap,painting,powder coated, oiled, punching,shrink,woven bag, stamping,embossing ect.
Applications	Steel Structure,Scaffolding,Fence,Conduit,Greenhouse,Decorative pipe, Post, Roofing

Galvanized round pipe specifications:

Outer Diameter		Wall Thickness	Length
Inch	mm	mm	meter
1/2"	21.3mm	0.6mm-3.0mm	0.3m-12m
3/4"	26.9mm	0.6mm-3.0mm	0.3m-12m
1"	33.4mm	1.0mm-3.0mm	0.3m-12m
1-1/4"	42.3mm	1.0mm-4.0mm	0.3m-12m
1-1/2"	48.3mm	1.0mm-4.0mm	0.3m-12m
2"	60.3mm	1.5mm-4.0mm	0.3m-12m
2-1/2"	76.1mm	1.5mm-4.0mm	0.3m-12m
3"	88.9mm	1.5mm-9.5mm	0.3m-12m
4"	114.3mm	2.0mm-9.5mm	0.3m-12m
5"	141.3mm	3.0mm-9.5mm	0.3m-12m
6"	168.3mm	3.0mm-12.0mm	1.0m-12m
8"	219.1mm	3.2mm-12.0mm	1.0m-12m
10"	273mm	3.2mm-12.0mm	1.0m-12m
12"	323.8mm	6.0mm-15.0mm	1.0m-12m
14"	355.6mm	8.0mm-15.0mm	1.0m-12m
16"	406.4mm	8.0mm-20.0mm	1.0m-12m

Galvanized square pipe specifications:

sizo(mm)		wall Thicknoss	szo(mm)		wall Thicknoss	szo(mm)		wall Thicknoss
sizo(mm)		(mm)	szo(mm)		(mm)	szo(mm)		(mm)
19x19		1	50x60	55x55	1.3	60x170	127x127	2.5
		1.2	50x70	60x60	1.4	70x160	130x130	2.75
		1.3	50x75	65x65	1.5	75x150	140x140	3.0-5.75
		1.4	50x80	70x70	1.7	80x150	150x150	7.5-9.75
		1.5	50x90	40x70	1.8	80x180	100x200	10.5-11.75
		1.7	60x80	40x80	2.0			12.5-15
		2.0	30x100	40x90	2.2	150x180	80x220	2.5
25x25		1		40x100	2.5-4.0	60x200	160x160	2.75-3.25
20x30		1.2			4.25-5.0	60x220	180x180	3.5-5.0
		1.3			5.25-5.75	80x200	12ox160	5.25-9.75
		1.4			5.75-6.0	100x180	120x200	10.5-11.75
		1.5	40x120	75x75	1.3	100x250	150x170	12.5-15.75
		1.7	40x140	80x80	1.5	140x180	150x200	16-30
		1.8	50x100	85x85	1.7	100x300	135x135	2.75
		2	50x110	90x90	1.8	100x350	200x200	3.0-3.25
		2.2	50x120	60x90	2.0	125x250	225x225	3.5-9.75
		2.5-3.0	50x125	60x100	2.2	130x250	150x220	11.5-11.75
20x40	30x30	1	70x100	60x120	2.5-4.0	140x240	150x250	12.5-14.75
20x50	32x32	1.2		80x100	4.25-5.0			15.5-15.75
25x40	35x35	1.3			5.25-5.75			16-30
30x40		1.4			7.5-9.75	180x300	220x220	3.5-4.0
		1.5	60x140	100x100	1.5	100x400	250x250	4.5-5.75
		1.7	75x125	80x120	1.7	150x350	200x280	6.5-11.75
		1.8	40x135	60x130	2	150x300	200x300	12.5-14.75
		2.o	50x140	50x150	2.2	200x250	130x300	15.5-17.75
		2.2			2.5-5.0	200x400	300x300	4.75-11.75
		2.5-3.0			5.25-6.0	200x350	250x350	12.5-14.75
		3.5-3.75			6.5-9.75			15.5-17.75
20x60	40x40	1.2			11.5-16	300x320	350x350	4.75-11.75
25x50	45x45	1.3	50x160	110x110	2.5	300x350	250x450	12.5-14.75
25x65	40x50	1.4	70x150	100x125	2.75	200x500	300x400	15.5-17.75
30x50	40x60	1.5	80x140	120x120	3.0-4.0			18-30
30x60	50x50	1.7	80x160	125x125	4.25-4.75	150x450	280x280	4.5-5.75
30x70	35x60	1.8	90x150	60x150	5.25-6.0	200x450	400x400	6.5-11.75
20x80	38x38	2.o	90x160	60x160	6.5-7.75	200x600	300x450	12.5-14.75
		2.2	100x120	60x180	9.5-9.75	250x400	300x500	15.5-17.75
		2.5-4.0	100x140	65x180	10.5-11.75	250x500	350x400	18-30
		4.25-5.0	120x180	100x150	12.5-15.75	300x600	320x320	4.5-7.75
		5.25-5.75			16-30	300x700	450x450	9.5-9.75
		5.75-6.0				400x500	500x500	11.5-13.75
						400x600		14.5-15.75
						300x650		16.5-17.75
								18-30

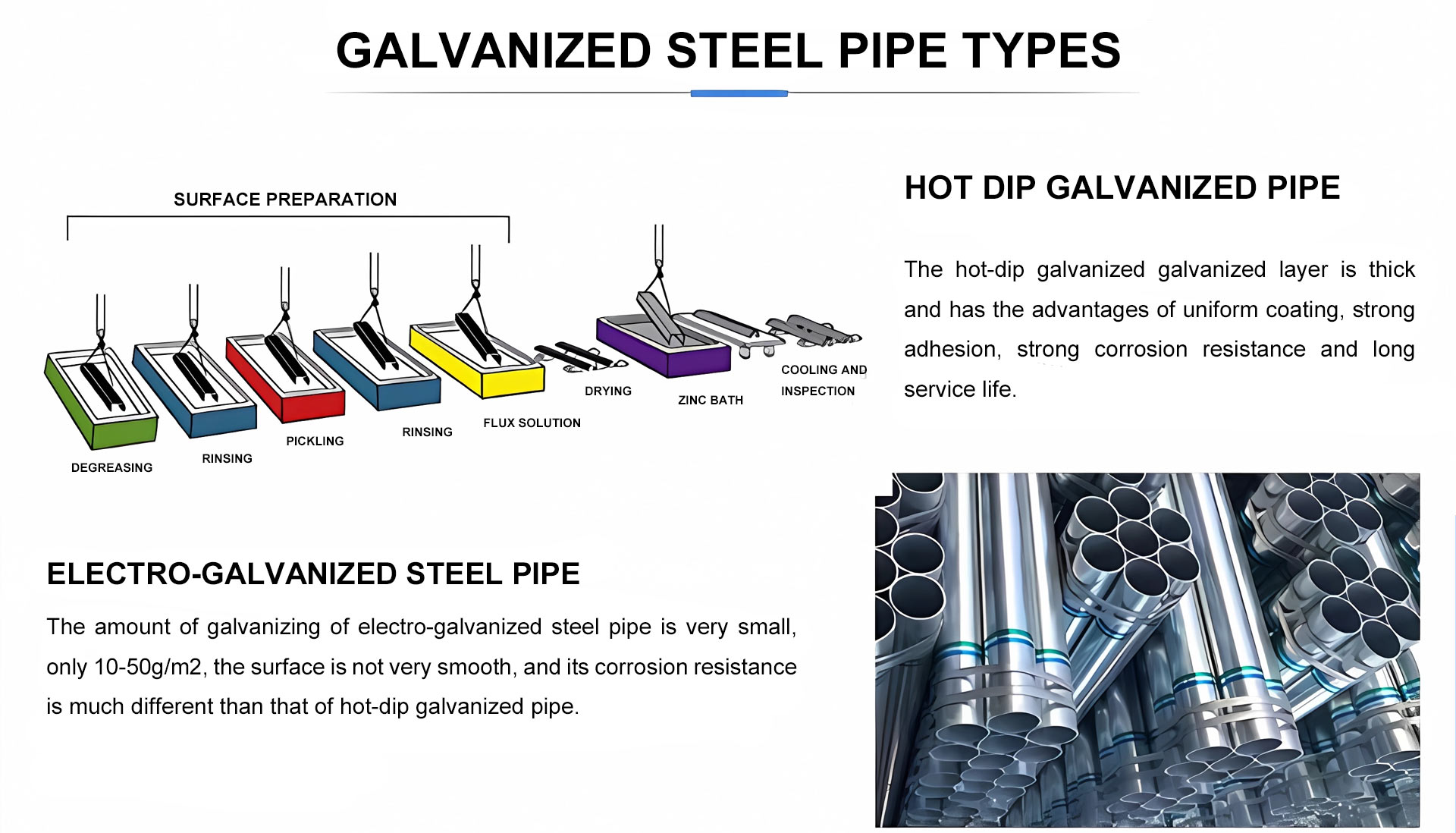

Galvanized steel pipe has the following production steps:

Black inspection → hanging → degreasing → rinsing → pickling → cleaning → dip plating aid → hot air drying → hot dip galvanizing → Cooling → Passivation and rinsing → Unloading → Inspection and dressing → packing, warehousing and transportation.
