Seamless Steel Pipe
Seamless steel pipe is perforated by the whole round steel, and the steel pipe with no weld on the surface is called seamless steel pipe. According to the production method, the seamless steel pipe can be divided into hot-rolled seamless steel pipe, cold-rolled seamless steel pipe, cold-drawn seamless steel pipe, extruded seamless steel pipe, pipe jacking and so on. According to the section shape, the seamless steel pipe is divided into two kinds of round and shaped, shaped pipe has square, oval, triangle, hexagonal, melon seed, star, fin tube and many complex shapes. The maximum diameter is 900mm and the minimum diameter is 4mm. According to different uses, there are thick wall seamless steel pipes and thin wall seamless steel pipes. Seamless steel pipe is mainly used for petroleum geological drilling pipe, petrochemical cracking pipe, boiler pipe, bearing pipe and high-precision structural steel pipe for automobiles, tractors and aviation.

Product sellable. Not available in the online Store - please contact us.

Contact us
The pictures shown are for reference only.
SPECIFICATION

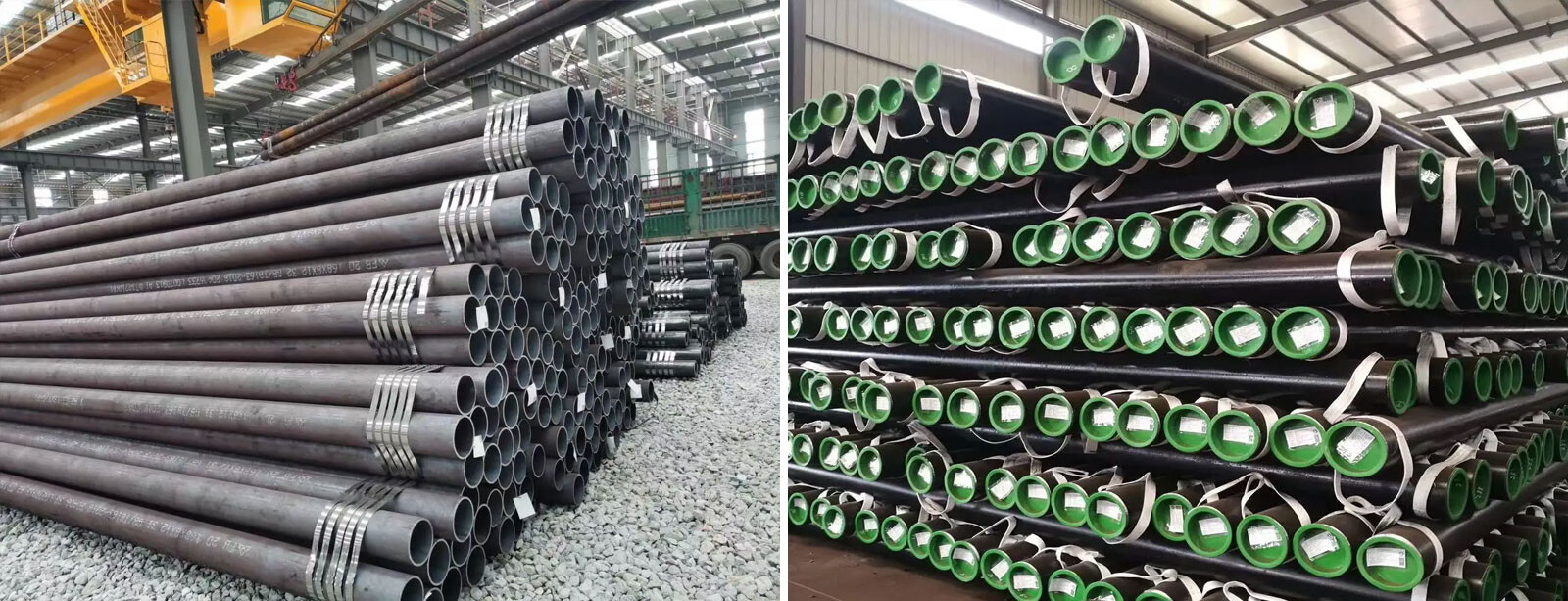

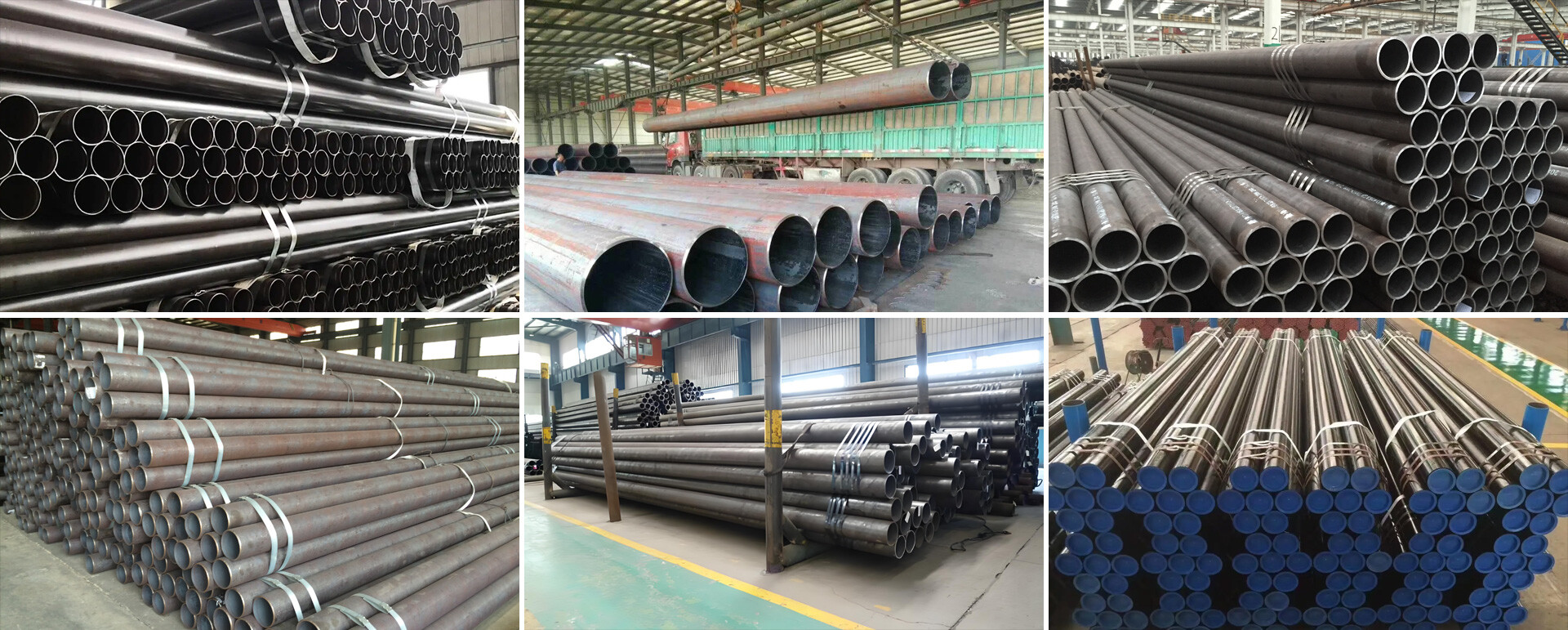

PRODUCT DISPLAY
MATERIAL / DOCUMENT DOWNLOAD
Sizes:

Maximum diameter: 36" (914.4mm)        minimum diameter: 1/2" (21.3mm)
Maximum thickness: 60mm                     mininmum thickness: 2.11mm

SCH: SCH10,SCH20,STD,SCH40,SCH60,XS,SCH80,SCH100,SCH120,SCH160,XXS


Coating:

3PE Coating3PP CoatingFBE CoatingEpoxy CoatingSpecial Painting


Standard of carbon seamless steel pipe:

ASTM A53 Gr.BBlack and hot-dipped zinc-coated steel pipes welded and seamless
ASTM A106 Gr.BSeamless carbon steel for high temperature service
ASTM SA179 Seamless cold-drawn low-carbon steel heat exchanger and condenser tubes
ASTM SA192 Seamless carbon steel boiler tubes for high pressure
ASTM SA210 Seamless Medium-carbon boiler and superheater tubes
ASTM A213Seamless alloy-steel boiler, superheater, and heat-exchanger tubes
ASTM A333 GR.6seamless and welded carbon and alloy steel pipe intended for use at low temperatures.
ASTM A335 P9,P11,T22,T91
Seamless ferritic alloy-steel pipe for high-temperature service
ASTM A336
Alloy steel forgings for pressure and high-temperature parts
ASTM SA519 4140/4130Seamless carbon for mechanical tubing
API Spec 5CT J55/K55/N80/L80/P110/K55Seamless steel pipe for casing
API Spec 5L PSL1/PSL2 Gr.b, X42/46/52/56/65/70Seamless steel pipe for line pipe
DIN 17175Seamless steel tube for elevated temperture
DN2391 Cold drawn seamless prevision pipe
DIN 1629 Seamless circular unalloyed steel tubes subject to special requirements


Tolerances of carbon seamless steel pipe:

Pipe typesPipe sizes(mm)Tolerances
Hot rolledOD<50±0.50mm
OD≥50±1%
WT<4±12.5%
WT 4~20+15%, -12.5%
WT>20±12.5%
Cold drawnOD 6~10±0.20mm
OD 10~30
±0.40mm
OD 30~50±0.45
OD>50±1%
WT≤1±0.15mm
WT 1~3+15%, -10%
WT >3+12.5%, -10%




MaterialASTMGBJISDIN
Carbon steelA53-A10(GB/T 8163)(GB 9948)STB 340St37.0(1.0254)
A53-B20(GB/T 8163)(GB 9948)STB 370St35.0(1.0308)
STS 370St35.4(1.0309)
A53-C
STPG 410St44.0(1.0256)
St45.0(1.0408)
STPT 410St45.4(1.0418)
STS 410St45.8(1.0405)
STB 410C22(1.0611)
A106-A10(GB/T 8163)(GB 9948)STPB 340St37.0(1.0254)
A106-B20(GB/T 8163)(GB 9948)STPT 370St35.0(1.0308)
20G(GB 5310)STS 370St35.4(1.0309)

STB 370St35.8(1.0305)
STPG 410St44.0(1.0256)
STPT 410St45.0(1.0408)
STS410St45.4(1.0418)
STB 410St45.8(1.0405)
A106-C16Mn(GB/T 8163)STPT 48017Mn4(1.0481)
STS 480St52.0(1.0831)

St52.4(1.0382)
A120Q235(GB/T 3092)G3452 SGP1629 St00
A134Q235(GB/T 3092)STPY 400St33.0(1.0035)
A139Q235(GB/T 3092)STPY 400St33.0(1.0035)
A333-1
STPL 380TTSt35N(1.0356)
A333-6STBL 380
Low alloy steel
16Mn(-40°C)(GB/T 8163)STPY 400St33.0(1.0035)
A333-3
STPL 45010Ni14(1.5637)
STBL 450
A333-8
STPL 690X8Ni9(1.5662)
STBL 690
A335-P116Mo15Mo3STPA 1215Mo3(1.5415)
STBA 12
A335-P212CrMo(GB/T 5310) (GB 9948)STPA 2013CrMo44(1.7335)
STBA 20
A335-P51Cr5Mo(GB 5310)(GB 9948)STPA 2512CrMo195(1.7380)
STBA 25
A335-P9
STPA 26X12CrMo91(1.7386)
STBA 26
A335-P1112CrMoV(GB/T 5310)STPA 2313CrMo44(1.7335)
STBA 23
A335-P1215CrMo(GB 9948)STPA 2213CrMo44(1.7335)
STBA 22
A335-P2212CrMo(GB 5310)STPA 2410CrMo910(1.7380)
10MoWVNbSTBA 24
A335-P91
KA-STPA 28
ATBA 28
MaterialASTMGBJISDIN
Carbon steelA283-C
SS 400St37.2(1.0037)
A283-DQ235-B(GB/T 700)SS 400St42.2(1.0044)
A283-DQ235-C(GB/T 700)SM 400A
A515Gr.55

H I (1.0345)
A515Gr.6020g (GB 713)SB 410H II (1.0425)
20R (GB 6654)SPV 235
20 (GB 710)
A515Gr.6522g,12Mng (GB 713)SB 45017Mn4(1.0481)
A515Gr.70
SB 48019Mn6
A516-6020g (GB 713)SM 400BASt 41
20R (GB 6654)SPV 235
A516-6522g,12Mng (GB 713)SM 400BASt 45
SPV 235
A516-70
SM 490BASt 52
SPV 315
Low alloy steelA662-C16Mng (GB 713)SPV 33519Mn6(1.0473)
16MnR (GB 6654)
A662-C16MnDR(GB 3531)SLA325
SLA360
A204-A
SB 450M15Mo3(1.5415)
A204-BSB 480M16Mo5
A387-2SCMV1
A387-12SCMV2
A387-11SCMV3
A387-22SCMV4
A387-21SCMV5
A387-5SCMV6
