Malleable cast iron Elbow
Malleable steel pipe fittings are suitable for medium conveying pipe connectors with nominal size (DN)6~(DN)150, operating temperature of -20℃~300℃, and maximum working pressure of 2.7 MPa. It is an important part of the pipeline system in the fields of gas, fire, water and HVAC, and can meet the connection needs of various pipeline systems. Whether it is direct or curved pipe, same diameter pipe or reduced diameter pipe, malleable steel pipe fittings can provide a solid and reliable British standard thread connection for convenient on-site construction.

Product sellable. Not available in the online Store - please contact us.

Contact us
The pictures shown are for reference only.
SPECIFICATION

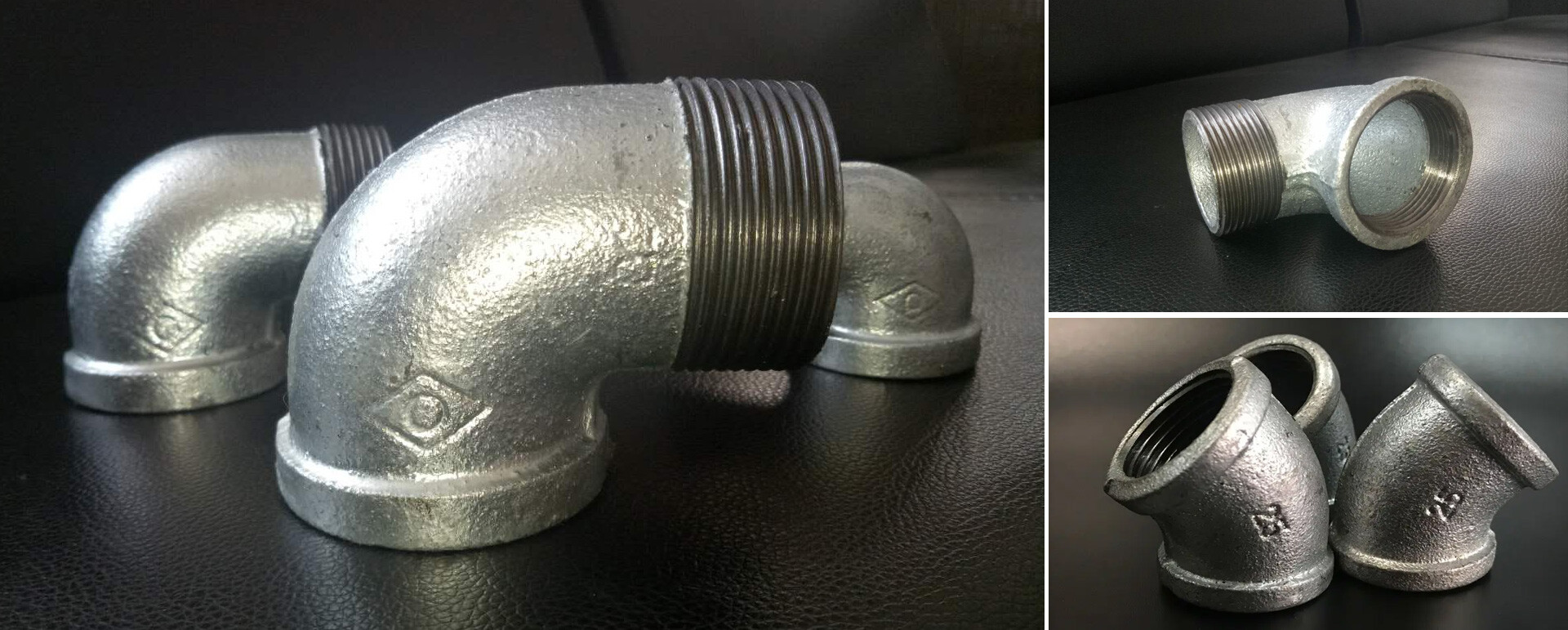

PRODUCT DISPLAY
MATERIAL / DOCUMENT DOWNLOAD
MaterialMalleable Iron,Ductile iron,Grey iron
Thread StandardBSPT(ISO 7/1), NPT(ANSI B1.20.1)
Size1/8" - 6"
Dimension StandardASME B16.3,ASME B16.14,ASME B16.39,
BS EN 10242,BS143,BS1256
ISO 49,DIN 2985
Physical PropertyTensile strength>=350Mpa,Elongation>=10%,Hardness<=150HB
Testing Pressure2.5MPa
Working Pressure1.6MPa
Head shapeBeaded or Banded
SurfaceGalvanized OR Black
Expoxy power ColorRed,White,Blue,Yellow,Green
ConnectionMale,Female threaded
ApplicationSuitable for fire piping system, air, steam, water,gas, oil , home decoration , equipment and so on
