Malleable cast iron reducer
Malleable steel parts are forged cast iron, often used in the manufacture of pipe fittings, such as a variety of pipe joints, malleable steel parts of the main application range, such as gas supply heating, fire water supply, etc., have their practical applications, malleable steel parts have certain advantages, such as better mechanical properties, high performance, in the strength, hardness and wear resistance have shown good results in the application of malleable steel pipe is very wide.

Product sellable. Not available in the online Store - please contact us.

Contact us
The pictures shown are for reference only.
SPECIFICATION

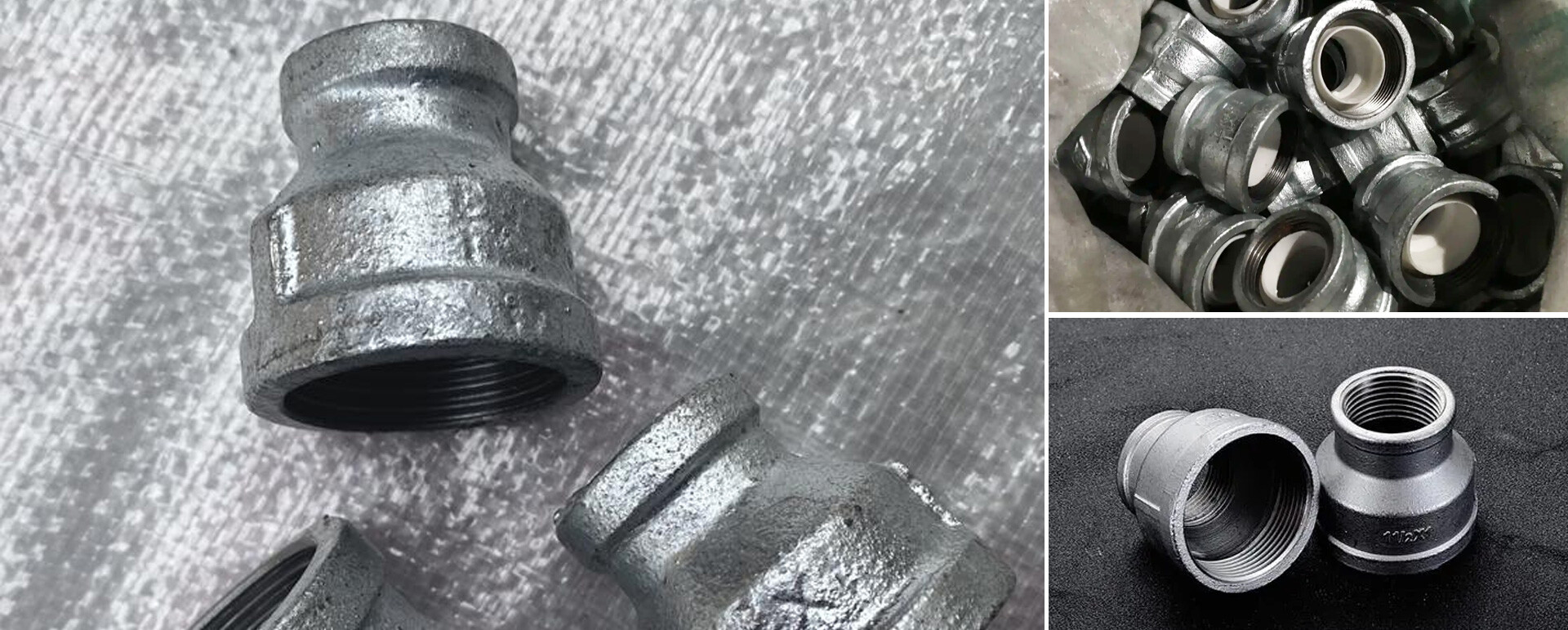

PRODUCT DISPLAY
MATERIAL / DOCUMENT DOWNLOAD
MaterialMalleable Iron
Maximum Pressure25 BAR (363PSI) (2.5MPA) CLASS 150
Maximum Temperature200°C (392°F)
Tensile Strength≥More than 350MPA
Hardness≥HB150 (Brinell)
Elongation Rate≥10%
Suitable ApplicationsWater, Gas, Fire-fighting system etc.,
StandardEN10242 / ANSI / ASME B16.3 / DIN2950 / IS0 49 / GB/T3287
Threaded StandardEN10226 / ASME B.1.20.1 / DIN2999 / IS554
SizeFrom 1/8'' to 6''
SurfaceGalvanized/Black/Painted/Cold Electrolytic
