Malleable cast outer wire joint
Malleable steel parts are forged cast iron, often used in the manufacture of pipe fittings, such as a variety of pipe joints, malleable steel parts of the main application range, such as gas supply heating, fire water supply, etc., have their practical applications, malleable steel parts have certain advantages, such as better mechanical properties, high performance, in the strength, hardness and wear resistance have shown good results in the application of malleable steel pipe is very wide.

Product sellable. Not available in the online Store - please contact us.

Contact us
The pictures shown are for reference only.
SPECIFICATION

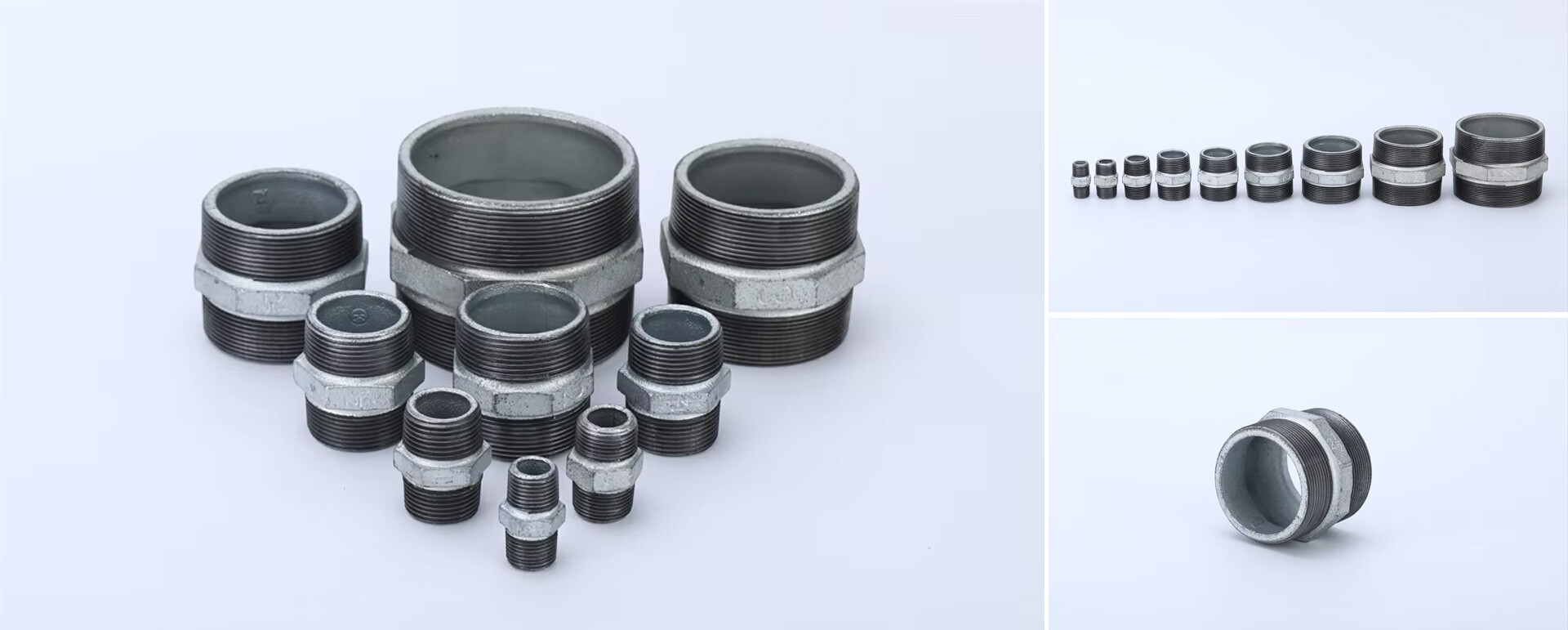

PRODUCT DISPLAY
MATERIAL / DOCUMENT DOWNLOAD
MaterialMalleable Iron
Maximum Pressure25 BAR (363PSI) (2.5MPA) CLASS 150
Maximum Temperature200°C (392°F)
Tensile Strength350MPA
Test pressure2.4 Mpa
HardnessHB150 (Brinell)
VarietyBanded, Beaded, Plain
Elongation Rate10%
Suitable ApplicationsWater, Oil, Gas, Petro-Chemical
StandardEN10242 / ANSI / ASME B16.3 / DIN2950 / IS0 49 / NBR6943 / IS1879 / BS EN10242
Threaded StandardEN10226 / ASME B.1.20.1 / DIN2999 / ISO7-1 / ISO228 / IS554 / BS EN10226
Work PressuresPN25 / 2.5Mpa / 363PSI /CLASS 150 / 25Bar
BrandCHANGXUAN PIPE,RUINING PIPE
